Timing Pinion Extractor Tool

The current price for this tool (part # 06-7524) is $105.11.
The current price for the tool rental (part # 06-7524/R) is $50.00, with a $40 deposit.
Prices are current as of 12/14/17.

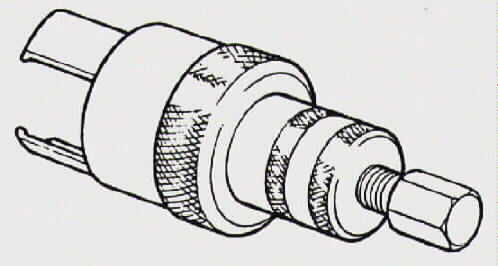

Tool

Fit the extractor over the timing end of the crankshaft and engage the three claws behind the pinion gear. Tighten the large outer knurled ring as firmly as possible. Screw in the large bolt to extract the pinion.

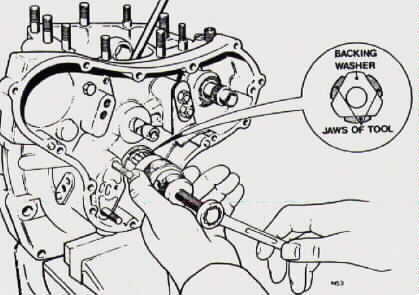

tool in use
