Boyer Power Box, Single Phase

The current price for the Power Box (part # 17-400001) is $159.81, as of 03/25/13.

Power Box These pictures show the Boyer Power Box. This Power Box is 3 5/8" long, 2 1/2" wide and 1 3/8" thick. This Power Box will work with both Positive Ground and negative ground systems.
Power Box Input: Any permanent magnet alternator, single phase two or three wire, up to 180 Watts.
Output: 13/14 Volts DC (Charging 12 Volts).
Size: 66mm Long, 62mm Wide, 35mm High, 92mm x 66mm Mounting Flange.
Weight: 200 gms.

Mount the unit in free air: This can be in a battery box, but some air for cooling is required.
Use rubber vibration mounting for severe conditions.
Never connect the battery the wrong way round: A fuse must be placed in one of the battery connections.
When running without a battery: No fuse is required and it is in order to short the output to stop the engine.

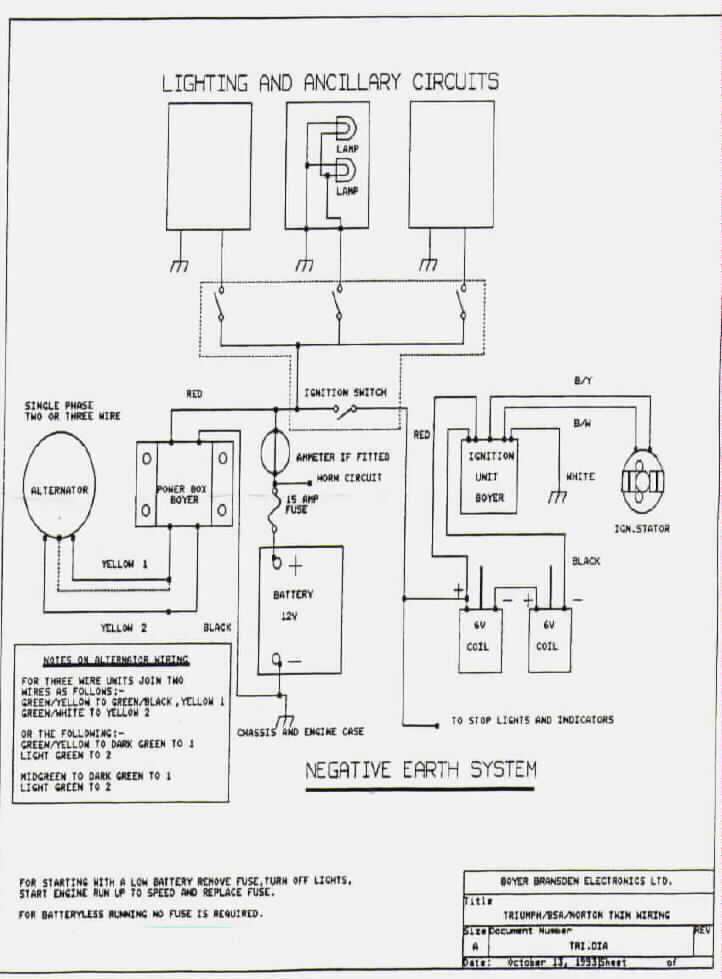

The following wiring diagrams show how to wire in the Boyer Power Box. Wiring Diagram

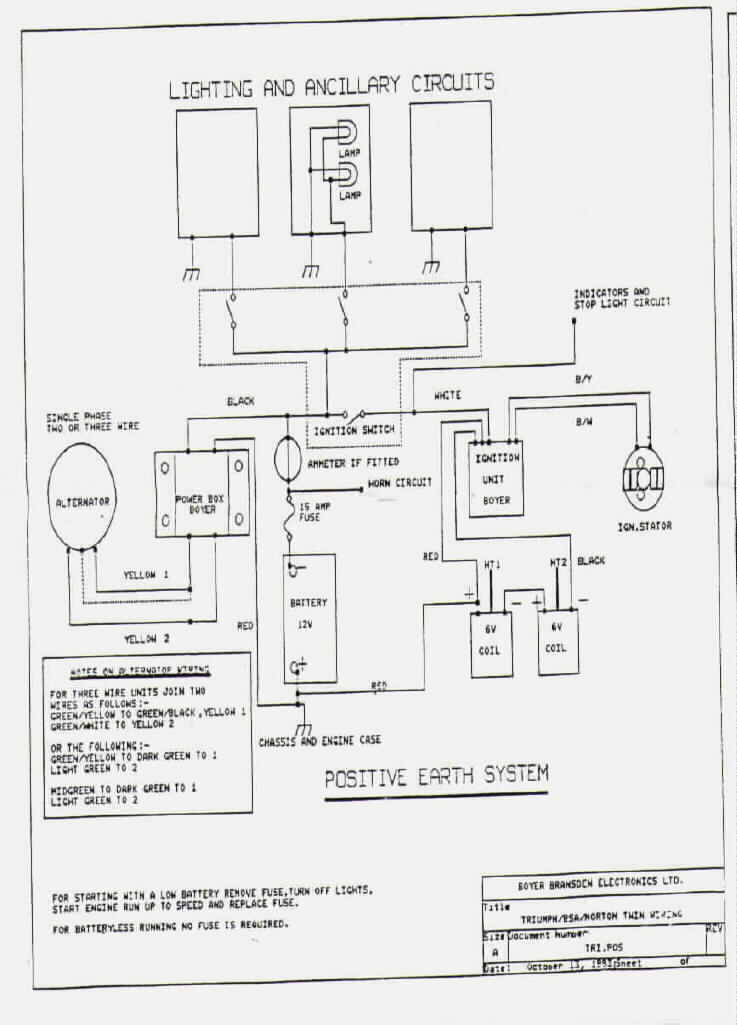

Wiring Diagram
