Mini Stalk Turn Signal Brackets
The price for this bracket set (part # 17-100030/B) is
$35.00,
and is current as of
12/28/08.

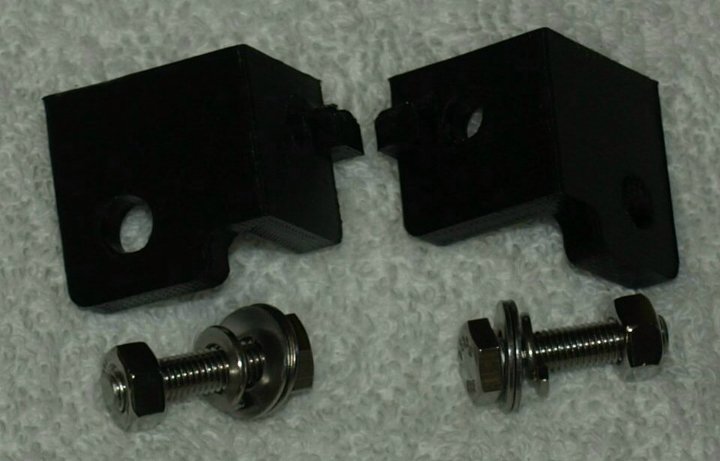

This pictures shows the brackets and the stainless mounting kit.

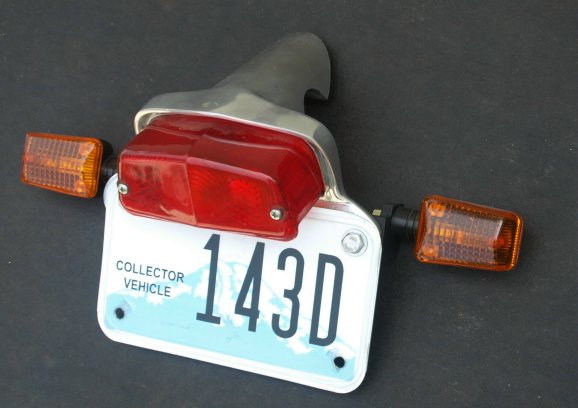

This shows one of the custom tail light assemblies with the Mini Stalk Turn Signals mounted using our brackets.
More Information about the custom tail light assemblies and Mini stalk are at:
- Custom Tail Light Assembly, Housing & Light (part # 17-10029)
- Custom Tail Light Housing (part # 17-061122/S)
- Old Britts Housing, Tail Light, Custom (part # 17-100030)
- Mini Stalk Turn Signals (part # 17-100110)

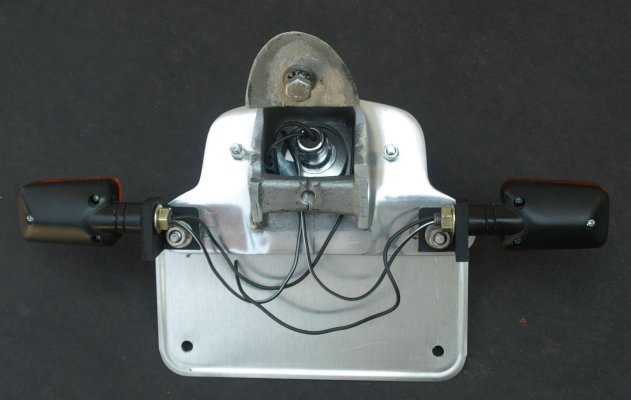

This shows the brackets mounted to the tail light.

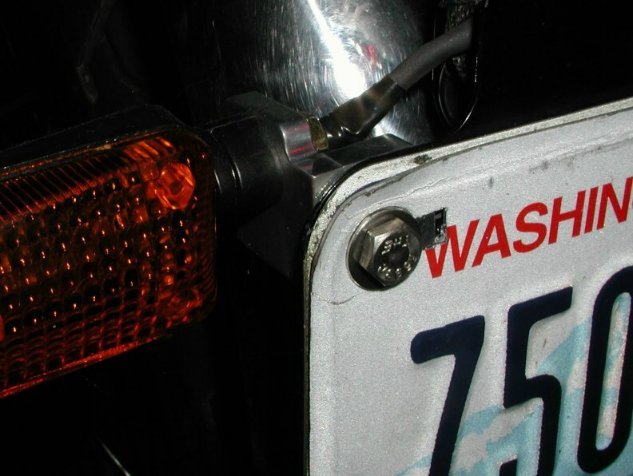

If you are going to use this turn signal bracket on a stock license plate bracket, you will have to file a rectangular slot in the stock bracket for the
locating boss of the turn signal mount. You may have to put a spacer between the license plate (an old license plate is used in this picture)
and file down the locating boss, so the bolt will tighten up against the license plate and not locating boss on the turn signal bracket.

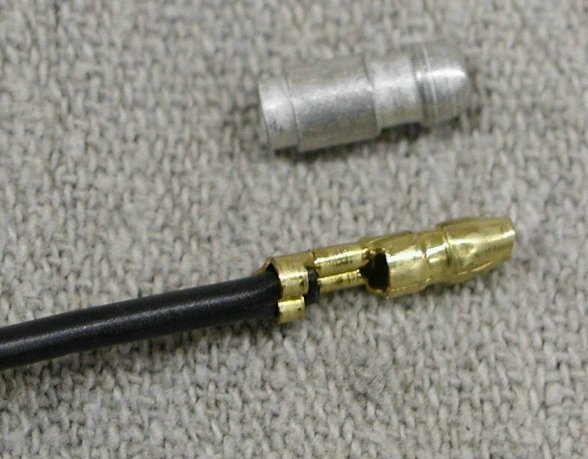

Note:The Mini Stalks come with a smaller bullet terminal than the standard Lucas bullet terminals. If you want the Mini Stalks to
plug into your stock wiring harness, you'll need to replace these -- see Lucas Bullet Type Terminal and Installation.
