Old Britts

Commando Single Mikuni Fuel Line Assemblies

All price are current as of 11/27/17.

Fuel Lines

This picture shows the three fuel lines for Commandos with a single Mikuni carburetor.

  • 06-5192/M, Fuel Line Assembly, Mikuni Single Carb, Black, (top), $45.00.
  • 06-5192/MS, Fuel Line Assembly, Mikuni Single Carb, Braided Stainless, (middle), $0.00.
  • 06-5192/MC, Fuel Line Assembly, Mikuni Single Carb, Clear, (bottom), DROPPED.

Black Line
The black line mounted on a bike.

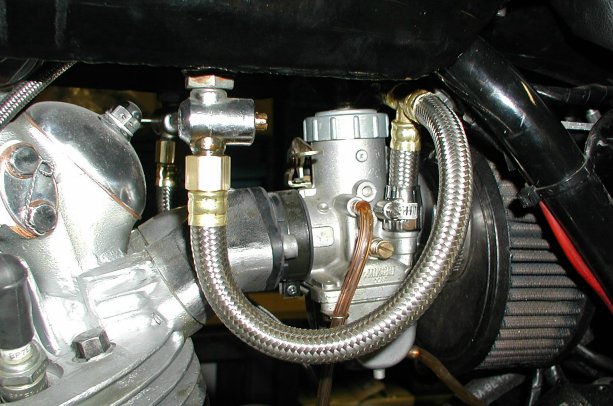

Stainless Line
The stainless line mounted on a bike.

Clear Line
The clear line mounted on a bike.

Mounting instructions

With the Mikuni carburetor drawing fuel from the top of the float bowl, it becomes hard to attach a fuel line to the carburetor and both petcocks without kinking the fuel line. This becomes very critical with the clear line since that is the most flexible of the three lines. Our fuel lines are designed to be mounted as shown in the following pictures.

Left Side
The left side of the bike.

Right Side
The right side of the bike.
