Old Britts

Commando Fuel Line Assembly, Mikuni Twin Carb, w Filters

Fuel Line
This picture shows the fuel line for Commandos with a twin Mikuni carburetors.

The current price for this fuel line (part no. 06-5192/2M) is $86.00 as of 12/14/17.

Mounting instructions

With the Mikuni carburetor drawing fuel from the top of the float bowl, it becomes hard to attach a fuel line to the carburetor and both petcocks and still feed both carburetors. What we have come up with is a fuel line with two "T"s, one below the carbs and one on top of the carbs. The fuel goes from the petcocks through the filters to a "T" under the carbs, then up between the carbs to the second "T" and from there to the fuel intake on the carbs.

The following pictures show how to mount this fuel line.

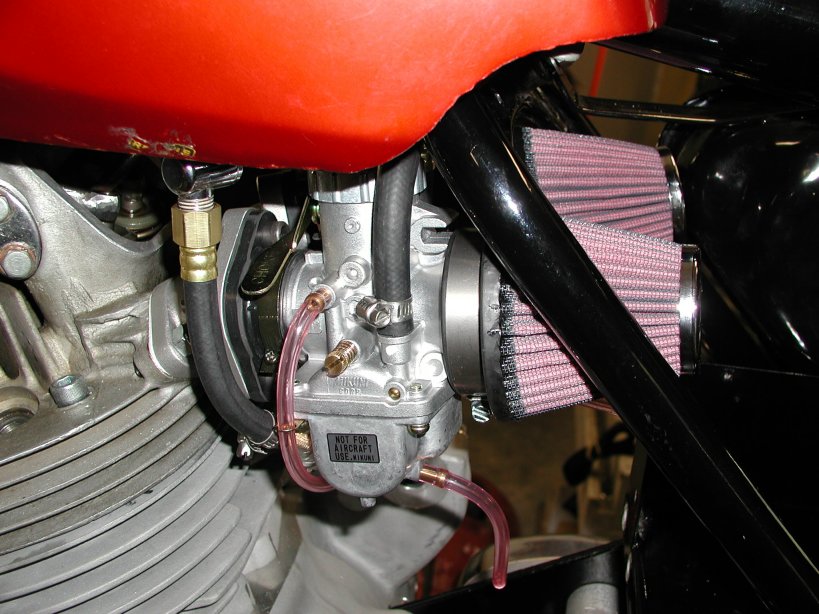

Left Side
The left side of the bike.

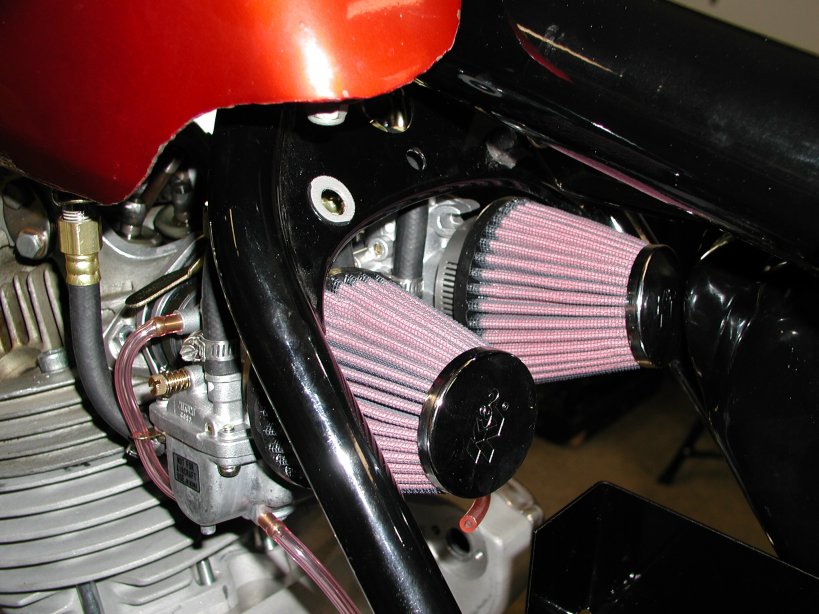

back Side
The back side of the bike.

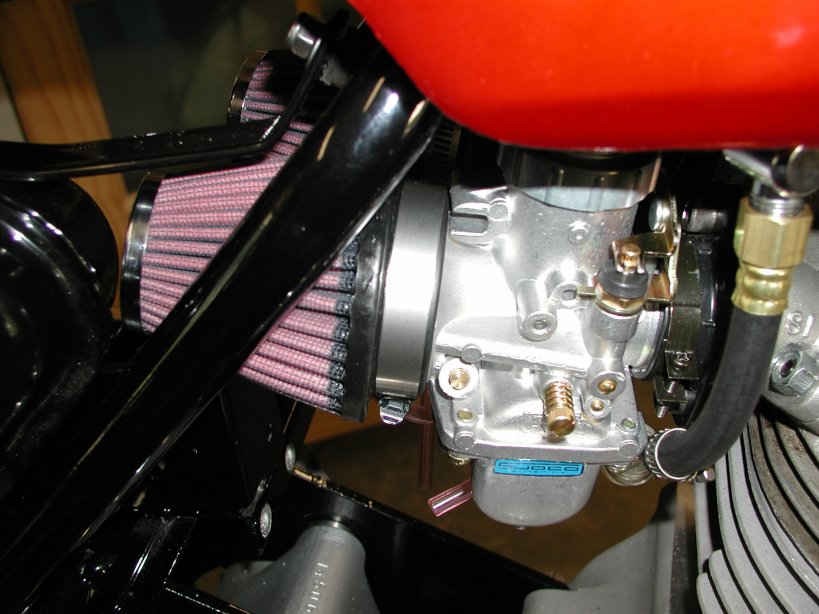

Right Side
The right side of the bike.
