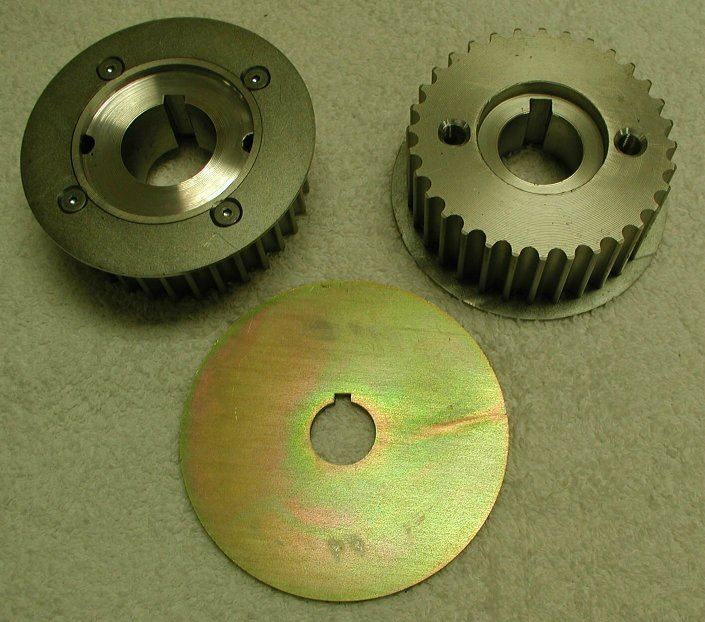

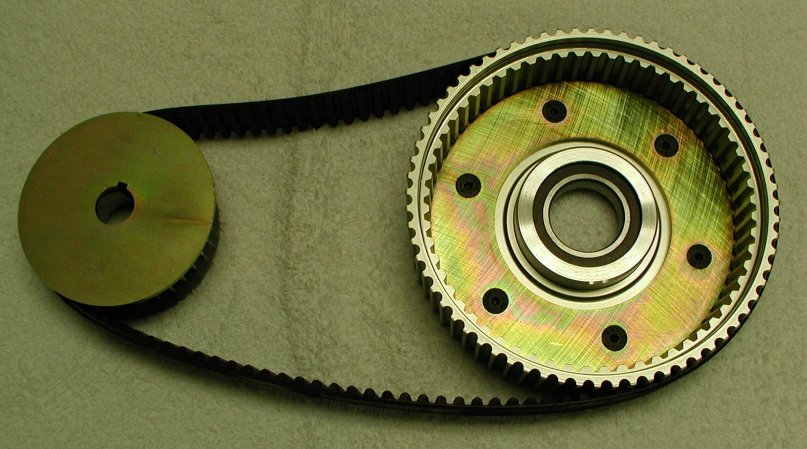

This belt drive kit comes standard with a 32 tooth alloy drive pulley and 68 tooth alloy clutch sprocket.
This kit is currently available in the 30mm belt sizes and a 40mm belt size will be available in the future.
The 30mm belt will allow the use of the stock Commando alternator where the 40mm belt will not.

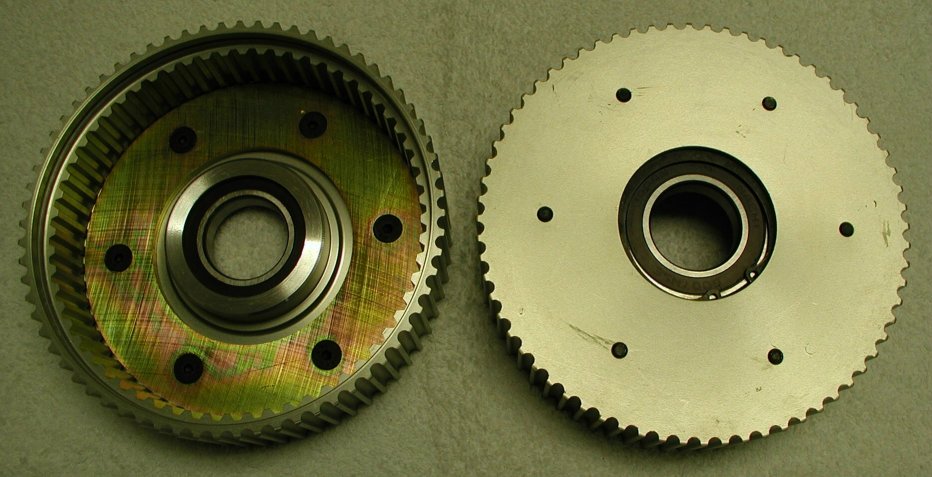

This clutch drum will work with the four friction plate 750cc clutch plates or the five friction plate 850cc clutch plates.
The clutch drum comes with a sealed bearing, but you will reuse your existing clutch center (06-3979).
The 30mm belt kit weighs approximately 2 1/2 pounds which is a 5 pound weight savings over the stock drive system
(drive sprocket, triplex chain and clutch hub).
34 tooth drive pulleys will be available in the future for both the 30mm and 40mm kits, see Drive Pulleys for Belt Drive.
Prices:
11-800022 - Commando Belt Drive Kit, 30mm, 32Tx68T,
$650.00.
06-3979 - NORTON, Clutch Center, 750 and 850 Commando,
$172.52.
Installation instructions are to be included soon.
